PRODUCT: 10in1 Service Intervals & Airbag Reset Tool |
This Tool is an essential tool for resetting of oil service light, service warning light, service mileage, service intervals and airbag on European made vehicles like AUDI, BMW, CITROEN, MERCEDES BENZ, MINI, SAAB, SEAT, SKODA,VOLKSWAGEN, VOLVO, etc. (Note: This tool does not support CAN Protocol!) |
It is light, compact and very convenient without using the OEM Scanner to do the job. Once hooked up to the vehicle Data Link Connector (DLC), it can perform the following functions: l Reset of Oil Service Light l Reset of Service Warning Light l Setting of Oil Service Mileage l Setting of Service Mileage Interval l Setting of 1st Inspection Service Interval l Setting of 2nd Inspection Service Interval l Reset of Airbag |
KEYPAD FUNCTION: - ESC Key - When this key is pressed, it will exit and return to the previous function. - OK Key - This key is to confirm the selected function and will enter when pressed. -Ã Key - This key is to scroll up the page. - Ä Key - This key is to scroll down page. |
FUNCTIONS on Different Vehicles: |
1. AUDI (1991 Above) |
Model | Function | A3 A4 A6 A8 A100 | • Reset Oil Inspection Light • Set Inspection 1 Service Interval • Set Inspection 2 Service Interval • Reset Airbag | TT | • Reset Oil Service Light • Reset Airbag | Other Models | • Auto Detect |
|
2. BMW (1998 Above) Model | Function | 3 Series E36 7 Series E38 5 Series E39 | • Reset Oil Service Light • Set Inspection Mileage | 3 Series E46 (OBDII) | • Reset Oil Inspection Light • Set Inspection 1 Service Interval • Set Inspection 2 Service Interval • Reset Airbag | Other Models Type 1 Type 2 | • Reset Oil Service Light • Set Inspection Mileage |
|
3. CITROEN Model | Function | Saxo Xantia Xsara | • Reset Airbag |
|
4. MERCEDES BENZ (1996 Above) Model | Function | A Class C Class E Class CLK Class | • Reset Oil Service Light • Reset Airbag | E Class > 99 E Class (OBDII) M Class S Class | • Reset Airbag | Other Models | • Reset Oil Service Light |
|
5. MINI Model | Function | Mini | • Reset Airbag |
|
6. SEAT Model | Function | Alhambra Alhambra >98 | • Reset Oil Inspection Light • Set Inspection 1 Service Interval • Set Inspection 2 Service Interval • Reset Airbag | Arosa Leon Toledo | • Reset Oil Service Light • Reset Airbag |
|
7. SKODA Model | Function | Fabia Octavia Octavia >98 | • Reset Oil Inspection Light • Set Inspection 1 Service Interval • Set Inspection 2 Service interval • Reset Airbag |
|
8. VOLKSWAGEN (1991 Above) Model | Function | Golf 3, Golf 4 New Beetle Passat B5, Passat >97 Polo >98 Sharan Lupo | • Reset Oil Inspection Light • Set Inspection 1 Service Interval • Set Inspection 2 Service Interval • Reset Airbag | Sharan >98 | • Rest Oil Inspection Light • Set Inspection 1 Service Interval • Set Inspection 2 Service Interval | Other Models | • Auto Detect |
|
9. VOLVO (1992 Above) Model | Function | V 40 V 70 850 850 TDI | • Reset Oil Service Light • Reset Airbag | Other Models Type 1 Type 2 | • A/B Connector (Auto Detect) • OBD2 Connector (Auto Detect) |
|
OPERATION : 1. This Service Light and Airbag Reset tool is powered up directly through the vehicle Data Link Connector (DLC) except Volvo (A/B connectors) which needed an external 12V DC source. 2. Once connected to the vehicle DLC and the ignition switched to “ON” position, the LCD screen will display as per photos above: 3. Select the vehicle you need to work with by pressing the scroll up à button or scroll down Ä button to select the vehicle Manufacturer. The asterisk appears next to the number is an indication that it will be selected when OK button is pressed. |
Example: If the vehicle you wish to select is BMW, model E46 – OBD2 Pressing ?? button until the display shown with an asterisk next to its name as shown: 1. MERCEDES BENZ *2. BMW Then press OK button, the display will show: *1. 3 Series E36 2. 7 Series E38 Press ?? button until the asterisk display at E46 – OBD2 as shown below: * 5. E46 – OBD2 6. Other Models Pressing OK button will change the display to: * 1. OIL INSPECTN 2. INSPECTION 1 Then press ?? button again to select the displayed item you want and confirmed with OK button. *3. INSPECTION 2 4. AIR BAG Once confirmed with OK button, the RESET Tool will communicate with the vehicle ECU automatically as shown below: CONNECTING PLEASE WAIT …… If the communication gets through, the unit will perform reset function automatically. The display will show as below if it had succeeded. RESET OK ! If the communication or the RESET function failed, the display will show as below. CONNECTION FAILED ! Then you need to check the cable and the connector for good contact and also whether the ignition switch is turned “ON”. After checking and the problem rectified, press ESC button to exit and perform RESET function again. |
|
OTHER LCD SCREEN DISPLAYS: Depending on the vehicle Manufacturer and model, the resetting procedures will be guided by the LCD displays. The explanations of the displays are as follows: Please try “ Other Models ” This display will show if the vehicle Manufacturer you have selected has “Other Models” in its menu and it will display when the particular car model you have selected failed to perform RESET. This message will prompt you when you press ECS button to exit. *1. TYPE 1 2. TYPE 2 |
The above display will show when “Other Models” has been selected to perform resetting procedures in BMW and Volvo menus. This menu (TYPE 1 / TYPE 2) is used on car models not listed in the car model menu. Select TYPE 1 to perform the RESET procedure first failing which then only select TYPE 2. For BMW and VOLVO, always observe the Oil Service Light or Service Inspection Light when the resetting operation finishes and the display shows “RESET OK!” The warning light on the instrument panel should goes OFF and the Service mileage (KM) will be set automatically if succeeded. If the Oil Service Light or Service Inspection Light failed to go OFF or reset even though display shown “RESET OK!”, then in this case change to the next selection (TYPE 2) and perform the RESET procedure again to clear and reset the warning light. The reason for failure to clear the warning light or reset the service mileage at the first instant is that the Reset Tool did not get the feedback from the ECU whether the operation is successful or not. It just sent instructions to the ECU to reset and once finished the display will display “RESET OK!” without acknowledgement from ECU. Therefore the selection of TYPE 1 and TYPE 2 are used in case the reset of warning light and the service mileage do not response as both (TYPE 1 and TYPE 2) send different instructions. |
For AUDI, VOLKSWAGEN vehicles, once the communication has established the display will show as below: Channel No. = 5 Ã, Ä Select The channel number selection is meant for selecting type of reset operation you want as given from the chart below: |
AUDI Model | Channel Nr. | Reset Description | A4 > 94 | 5 | Oil Service: 15000 KM | A6 / C4 > 98 | 6 | INSP - KM Service: 30000KM | 7 | INSP1- Time Service:360 days | 8 | INSP2- Time Service: 720 days | A3 > 96 | 15 | Oil Service: 15000 KM | A6/C5 > 97 | 6 | INSP-KM Service: 30000KM | A8 | 7 | INSP-Time Service: 360 days |
|
VOLKSWAGEN Model | Channel Nr. | Reset Description | Passat (B5) > 97 | 11 | INSP-KM Service: 30000KM | Polo > 97 | 10 | Oil Service: 15000KM |
|
Press à or Ä button to increase or decrease the channel number and then press OK button to confirm. |
Operation Example: Once channel 5 has been selected and confirmed, the screen displays as follow: Old Value: 08000 KM Press OK button again will change the display to: Next Oil Service 00000 KM To input the next oil service mileage, press Ãor Ä button, the screen will display the set mileage and confirm with OK button. The next screen display as follows: SERVICE SETTING PLEASE WAIT… After awhile, the screen displays: RESET OK! |

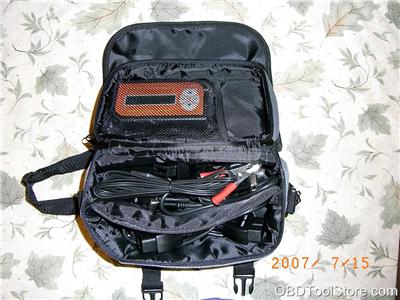

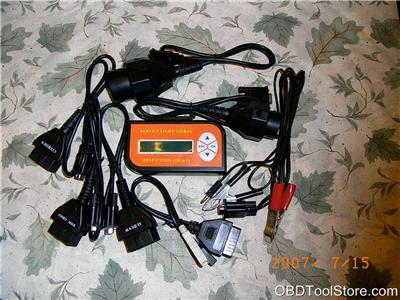

Package Includes: - Plastic carriage box; - 10 in 1 Service Light/Airbag Reset Tool; - Cable for BMW 20 pin; - Cable for BMW OBD2; - Cable for Citroen OBD2; - Cable for Mercedes 38 pin; - Cable for VW/AUDI 2x2; - Cable for VW/AUDI OBD2; - Cable for Volvo. |
Note: | This Item is brand new and the description is based on Manufacturer’s information and given to the best of my knowledge. |
Payment Terms: | Paypal is the only payment method accept where both the Buyer and the Seller is protected, Successful Bidder/Buyer shall settle payment within 3 days via Paypal. |
Shipping and Handling: | l Shipping handling time is within 2 working days after payment is cleared. l Item will be shipped by Hongkong Post Office Registered Mail which takes 5-15 working days to arrive at any major world cities, however remote area may take longer time. l Buyer shall be responsible for the import duties or tariffs, if any. l Seller is not responsible for any damage/lost package if the item is not insured. l Buyer has to make sure their shipping address with Paypal is correct, incomplete or incorrect address will cause lost of mail which the Seller shall not be held liable, thus no refund or claim will be accept in this case. |
Return Policy: | l If the Item does not function as described, the Buyer shall contact the Seller within 7 days from the date the Buyer received the Item and return the Item as per Seller’s instruction. l The Buyer is responsible for shipping the Item back to the Seller, and within 24 hours upon receipt of the returned Item the Seller will refund the full purchase amount less shipping & handling charges to the Buyer’s Paypal account. l Under no circumstances shall the Seller be held liable to pay compensation for any injury, loss or damage sustained by the Buyer how-so-ever arising. All responsibility and liabilities is solely on the Buyer/End User of the Item. |
