High Quality New Generation Buzzer Parking Sensor
System.
This product has
CE certification, the buzzer (speaker) can be fixed anywhere in the car,It is Cisbo product and based on Philips
DSP technique.
The buzzer sound in different frequency according to
different distances. Details shown in the table:
|
ALARM
SOUND |
|
Stage |
Distance |
Area |
Sound |
|
1 |
160-200cm |
Safe Mode |
No sound |
|
2 |
100-150cm |
Safe Mode |
Bi------Bi--------Bi |
|
3 |
70-90cm |
Alarm mode |
Bi---Bi---Bi--- |
|
4 |
40-60cm |
Danger Mode |
Bi-Bi-Bi- |
Specifications:
1) Measuring the distance by radar
2) Lesser package. One carton can be load 40PCS.Save the freight cost.
3) Alarm by three step Bi-Bi sound
4) cam work on 2 and 4 sensors.
5) Full-weather design, un-affected by wind, ice, snow & rain
6) Some other kinds of sensor colors and styles can be fitted.
7) High quality and easy to install
8)There are two model can be provided:
SB336-4 with 4 sensors
SB336-2 with 2 sensors
Packing Details:
1) Carton Size: 460mmX310mmX510mm
2) Quantity: 40 PCS/ CTN
3) G.W.: 20 KG
4) N.W.: 19.2 KG
Technical Parameters:
1). Rated Voltage: 12V DC
2). Operating Range: 10.5V~ 16V DC
3). Rated Current: 50mA~ 120mA
4). Detecting Distance: 0.4~ 1.5m

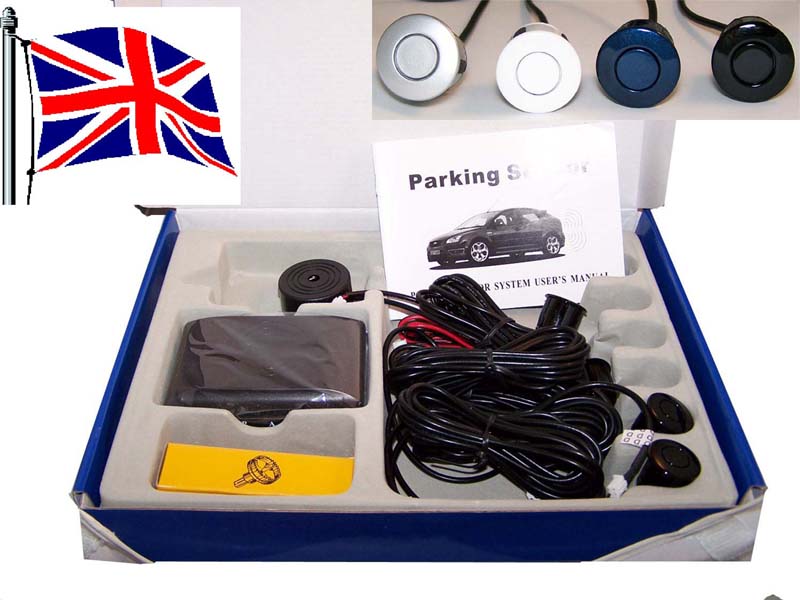

Kid
includes:
Four black sensor head
One control Units
Drill
bit
Beeper units
4 adjusting rings.

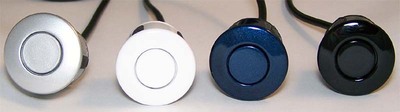

Note: We have black, silver,white and blue colour of sensor,please note us what colour of sensor you
want when you pay for it,if not, we will send black colour. If
you want buy it now, please visit our shop, the four sensors can be colour coated,sprayed
and painted,thanks.
