NEW ELECTRIC BIKE CONVERSION KIT E-BIKE KIT 500W

(26" Wheel Size)

Specifications:

• 26" Front Tire With Integrated 500W Brushless Motor With Interlocking Gears - 36VDC, 12AH (Beyond Street Legal)

• Instant Start - throttle control grip

• Auto - "power-off" brake handles

• Electronic Controller 500w - with warning light for low battery

• Battery - three sealed lead acid batteries 12V 12AHr

• Charger - automatic 240VAC to 36VAC

• Stainless Steel Rack - for easy and professional complete installation of your e-bike kit.

• Pedal Assist System- does not have to be activated/installed

• Nylon - deluxe battery case

• Two side battery carriers - These are just extra in case you can not use the stainless steel rack. These parts are not needed to install your kit with the stainless steel rack and battery/controller bag.

• Maximum Speed - 15-25km/hr

• Range - 2-3hrs (25km/charge)

• Charging time - 4-6hrs

• Battery Life - 300-500 cycles (lead acid)

• Energy Cost - £0.05 per charge

• Weight - Net weight without battery and without battery steel case (stand) 7.5kgs. Net weight with battery and stand 15kgs.

• Guarantee - 6months parts only - battery not included in guarantee

• We stock - all parts all the time

• Comprehensive - Installation Manual and Full Instructions Included

Please note the batteries are included as a FREE BONUS. The kit is fully guaranteed, but the batteries are NOT part of the guarantee. There is no guarantee or warranty expressed or implied on the free batteries that are included. That being said, there should be no problems with these batteries as they are new from the factory, but due to the nature of SLA batteries we will not guarantee them.

Why buy from Sylvan Company?

We have been platinum eBay PowerSellers since 1998. We are not going anywhere.

We have our technician on staff (email) to help with any installation issues with this e-bike kit.

We have all parts in stock and fully warranty all parts and ship needed parts free of charge within the guarantee period.

We have over 15,000+ feedback rating in the USA and approaching 10,000+ rating here in the UK.

This is a fully loaded kit; Full step by step English installation instructions will be included to transform any 26" Wheel size bike into a 250W electric bike!!

(Front wheel with patented integrated 250W hub brushless motor with interlocking gears, tube, and tire)

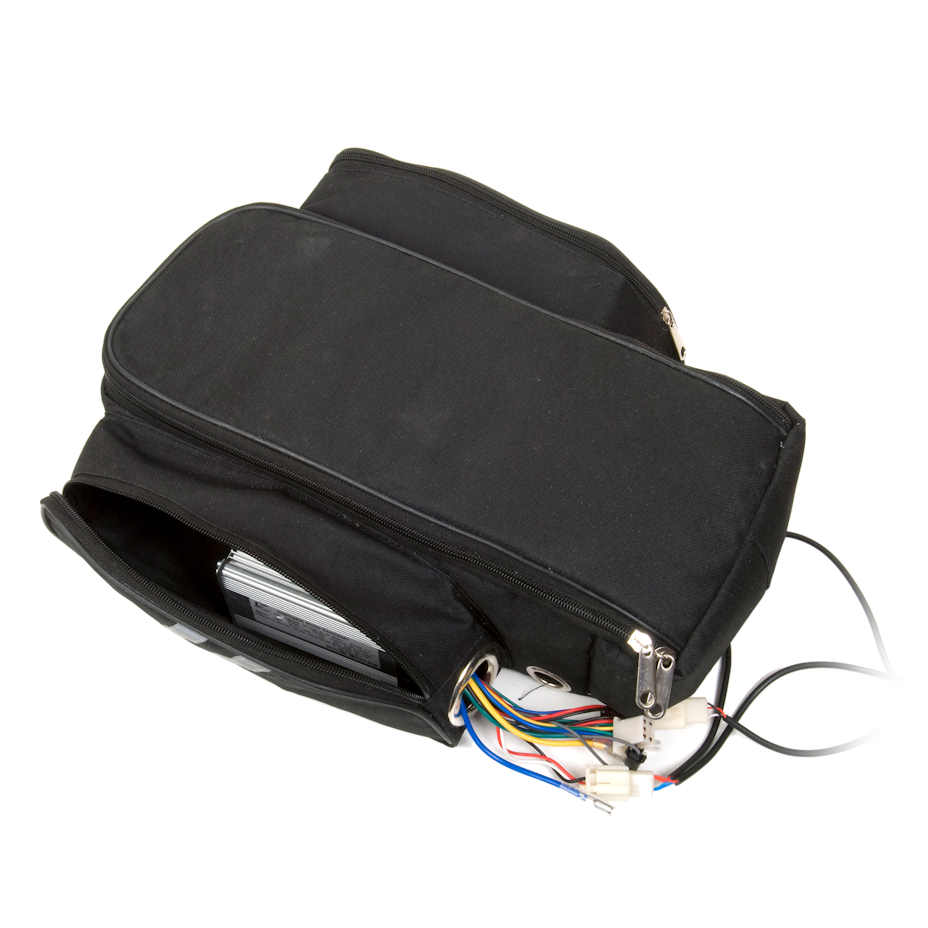

Bag with Controller

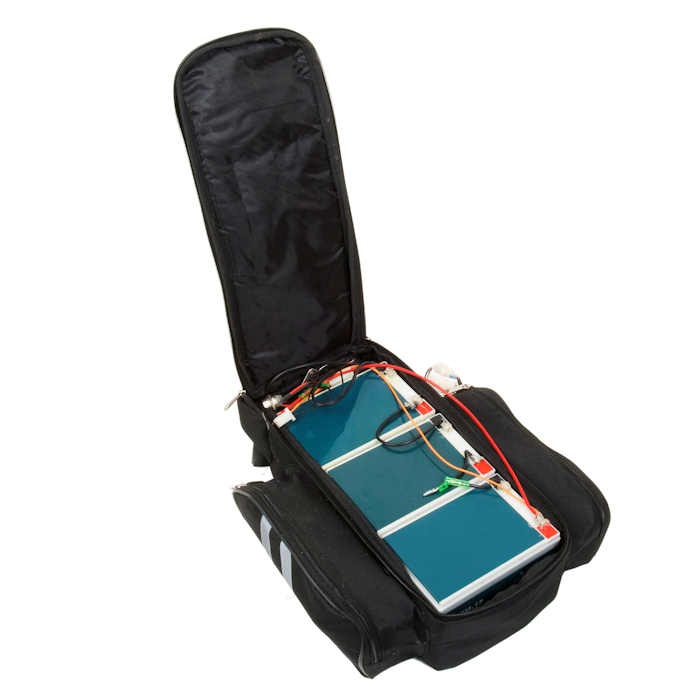

Battery Inside Bag

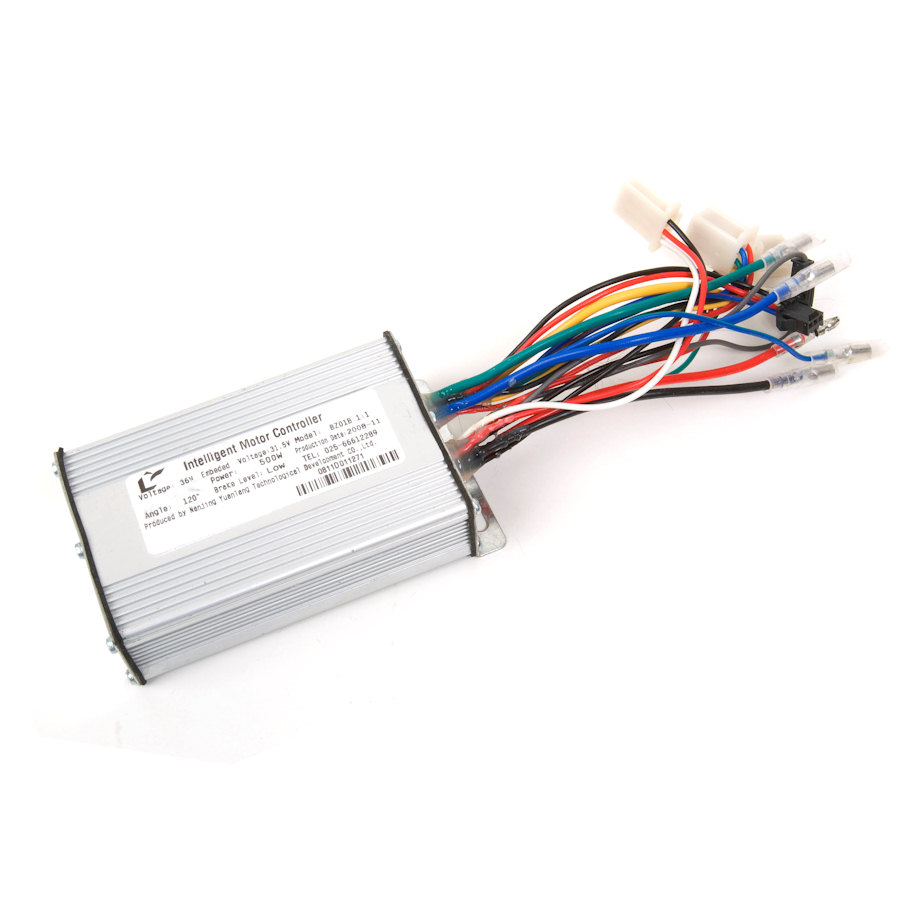

Intelligent Magic Wheel Controller

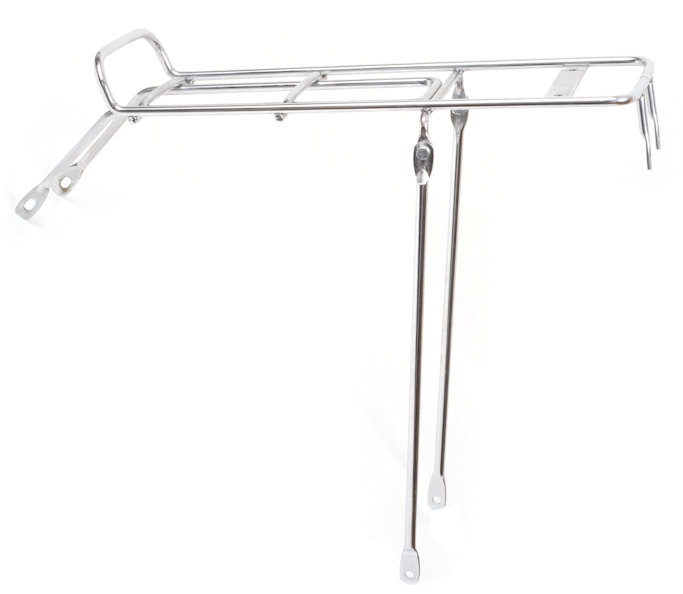

Stainless Steel Rack for Convenient Installation of Battery Bag- There are no other parts needed for installation on to any bike that can fit one of these racks.

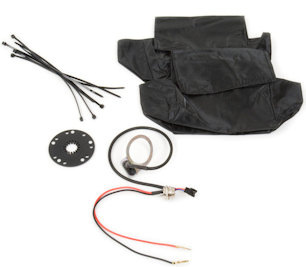

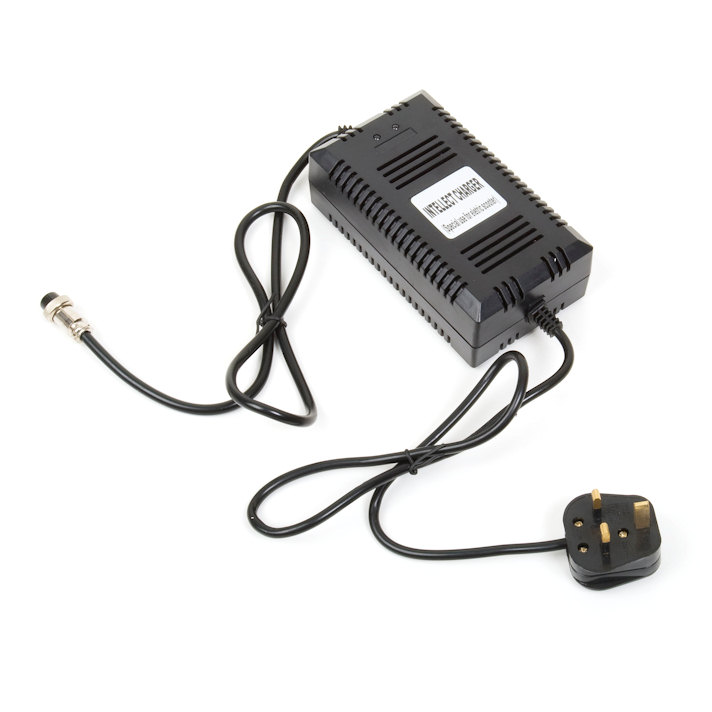

Smart Charger (full battery indicator with auto shutoff for full battery) UK 2220/240V Standard- Pedal Assist and miscellaneous parts BELOW

 Width of wheel where hub fits into the forks: 4.33"

With the Magic Wheel kit, you have a fully loaded kit from the start with everything you need in a do-it-yourself kit to turn your bike into an electric bike. However, it is recommended that a professional bike repairman install the kit.

A word about batteries:

Most battery's discharge capabilities are determined using a C-20 rate. This means the specifications given for a battery's performance are determined when the battery is discharged over a 20 hour period. Sealed Lead Acid batteries boast between 300-500 charge cycles, but this is when they are discharged at a C-20 rate. Using them in an electric bike kit discharges them 10 times (or more), faster than the C-20 rate. So this means you will not get anywhere near 300-500 charge cycles out of your batteries. With normal use, never running your batteries completely dead, and being very vigilant in charging your batteries back up IMMEDIATELY after each use, you can realistically expect between 100-200 charge cycles out of them.

The amount, or depth of discharge also has a lot to do with the life-expectancy of your batteries also. SLA batteries should never be run completely dead; since this will damage them and reduce their life expectancy. Automobiles use SLA batteries to start the car's gasoline engine. So why do car batteries last five years then, you ask? Because when the car battery is used to power the engine's starter motor, it is only used for a few seconds and is discharged only 10 % of it's total capacity (if that); then it is IMMEDIATELY recharged when the gasoline engine starts. This is why a car battery can last five or more years.

What kind of batteries does the Bike Electrified Kit use?

Sealed Lead Acid batteries (SLA), are the standard batteries that come with your kit. SLA batteries have been around for a long time. Some of their advantages are: they're reliable, easy to charge, and inexpensive. Disadvantages are: they're heavy, bulky, and they are very unforgiving when they are not charged back up immediately after use.

Your Extreme Sports  kit will come with two 12 volt, 7 amp/hr batteries connected in series to equal 24 volts, or you can upgrade your kit to Lithium-Ion batteries (sold seperately)

How long does it take to charge my batteries?

Depending upon the degree of discharge, it will take up to 4-6 hours to charge the standard battery pack, and up to 6 hours to charge the extended range battery pack.

Can my batteries be overcharged by leaving them plugged into the charger too long?

No. The charger that comes with your Bike Electrified kit is a smart charger. It will shut itself off when your battery pack reaches a full charge, but it is always a good idea NOT to leave your battery pack plugged in all the time. Just unplug the charger when the charger light is green.

How many charges can my battery pack take?

Your battery pack is built with sealed lead acid batteries (SLA), which can be charged and discharged up to about 200 times. But you must do some things in order to get the maximum life out of your SLA battery pack: ALWAYS, we repeat - ALWAYS charge your batteries up IMMEDIATELY after EVERY use! Sealed lead acid batteries hate to be left discharged, even for only a few hours, so plug your battery pack into the smart charger immediately after every use. Also, try not to run your batteries completely dead, for this will diminish their life cycle.

Where do I get replacement batteries?

Replacement batteries can be purchased through us , or you can buy them in your local area at many retail outlets, or eBay

Can I use other batteries with my Bike Electrified?

Yes, as long as the battery pack you are using puts out 24 volts - However, you will have to figure out how to strap your custom made battery pack to your bike frame. We recommend Li-Ion, LifePO4 batteries for best results.

Do we have Li-Ion batteries or LifePO4 batteries available? Not at this time, we have some Li-Ion batteries coming in stock in our UK warehouse in late March 2009.

Customer service policy: We stand behind all of our products. Defective items: Very rarely items come from the factory defective or missing parts. In this case please note that we stock all spare parts, and have product engineers on staff (email) to help resolve any issues. We can replace any missing parts and send by express post free of charge. Defective items that cannot be fixed with parts will be replaced with a brand new item.
