Special features:
1. Most 170-degree cameras on the market come with 140 to 150-degree horizontal view angle, and the 170-degree here refers to the theoretical DIAGONAL lens angle, and this CCD camera CL-20256CCD supports a wider horizontal angle as 165-degree due to the high quality wide-angle lens (made in South Korea) used and special optimization technology applied.
2. CL-20256CCD also excels against high- or low-temperature, moisture, rain, snow, etc.
3. Small size in CCD camera range and with bracket adjustable for best vision according to the mounting height
4. Low power consumption to save energy and more importantly prolong its working life.

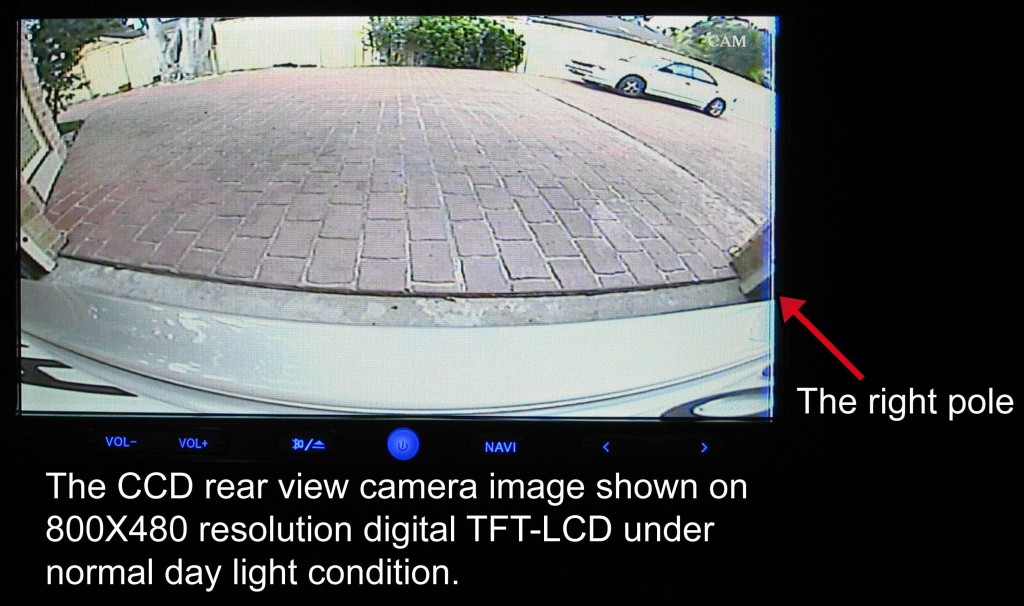

5. Thanks SONY image sensor technology! It gives better night vision picture than most IR camera under reversing lights illumination.
6. Compact design,un-attractable looking. The smallest CCD reversing camera we are selling so far
7. Black alloy shell,release heat fasT
8. Matt finish painting,LESS ATRACTION
9. Easy to install,angle up-down adjustable.
10.RCA video connection, DC power input with in-line fuse(1A).Come with 5m video cable and 0.5m DC power plug.
Technical Data:
1. Image Sensor: 1/4" SONY CCD
2. Camera model: CL-20256CCD
3. Water protection category: IP67
4. Resolution: 420TVL
5.TV system format: PAL/NTSC(Attention:please notice us which format you want after purchase)
6.Effective pixels:On NTSC screen: 510 x 492 pixels,On PAL screen : 512 x 582 pixels
7.Shutter speed: PAL: 1/50 to 1/15,000 second, NTSC: 1/60 to 1/15,000 seconds
8.S/N ratio: ≥50dB
9.Minimum illumination required: <0.02 lux(that's the reason why reversing lights illumination is enough,don't need LEDs)
10.Video output: 1.0Vp-p, 75Ω
11.Nominal power supply: 12V DC
12.Lens diagonal angle: 170°,horizontal viewing angle is 165 degree,which meets most C class vehicles requirement.
