GPS Antenna 1M Length MMCX Acer Holux Navman Mio medion

Active amplifier GPS Antenna

High Gain MMCX Connector GPS Antenna

 Max. Gain : 29dB  (21dB@2V, 26dB@3V, 29dB@5V)

1 meter length Magnetic Base and Water Resistant

The active antennas contains a high performance GPS patch antenna and a high-tech low noise amplifier. It provides excellent signal amplification and out-band-rejection for the receiver. All this is packaged into a low-profile, extremely compact and fully waterproof package.

if your gps device signal is weaker when you use it in city, crowd building area, bad weather or use it in the car with any kind of coated windscreen (athermancy or metal sintered), this item will solve the gps reception problem. you will never lost again with the antenna whatever your device is how many channel gps receiver.

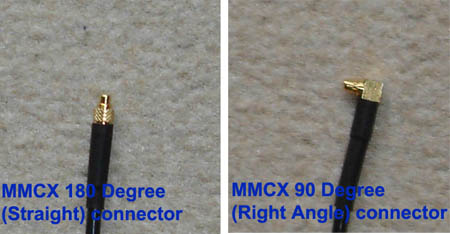

we have both 180 degree (straight) and 90 degree (right angle) connector, please note what you like when you make payment, otherwise 180 degree connector will be sent.

Compatibility list:



MMCX connector

Acer	N35 Navigations PDA (180 degree connector only)
AIRIS	PDA509
ALDI Medion	MD95000, MD95900 = MDPPC 150 (weitere siehe Medion)
AKTRONIX	BT
ADAC	Blue Media Pocket PC 255 Navigon
Blue Media	Pocket PC 255
Blue Media	Navigation System 6300/ Penny Navigation PNA BM 6300
BT Empfänger	BT-R500, BT Empfänger BR-R700, CF Empfänger ST-K500, ST-BTS 110, STBT110, ST-CF110
Delorme	Blue Logger GPS
eBonTek	eGPS 248 Bluetooth
Gatox	BT-3000
Globalsat	BC-307, BT-318, SDIO GPS BT 338
GO	Pass Bluetooth
Haicom	CF, HI-302CF, HI-303CF/MMF, Multi Mode Foldable
HOLUX	GR 236 BLUETOOTH Slim, BT 321 /271
Kirrio	BT 306, BT 308
Lidl	MYGUIDE Navigator 6500 XL/ MYGUIDE Navigator 6500 XL TMC Edition
Leadtek	LR 9537, 9534 (for new version, the older version has a MC Plug socket)
MDPNA	150 (MM95242, Micromaxx, Lidl, Plus, Cybercom), MD PNA 200 (= DigiWalker 136), PDA Medion 40600, MD 95900, Mio 136 (MDPNA 150 - Abarten:95023, 95058, 95069, 95084, 95085, 95119, 95145, 95157, 95161, 95164, 95165)
Medion	MD 95000, MD PNA 200 (= DigiWalker 136), MD95084, MD 95023, MD95900, MD 95085, Plus MD PPC 150 (Micromaxx), Medion MD95308, diverse, MDPNA: 150/ 175/ 200/ 200S/ 220/ 220T/ 240/ 240T/ 250/ 250T, MD 95119
Mitac	Mio 168, Mio 268, Mio 136
Navman	iCN 510, ICN 520, ICN 530, ICN 570, Navman PiN Pocket PC, Navman PiN 300 Pocket PC, ICN 320, ICN 330
NAVIGON	Bluetooth KIT m. MMCX , Navigon PNA
Navilock	Compact Flash (BC-307), Bluetooth GPS (BT-308)
NEMERIX	GPS GPS-BT77
Orion	NV-355
PRETEC	Compact GPS-LP
Penny	Navigation PNA BM 6300
Plus	MDPPC150 Micromaxx, RN - GPS Empfänger 600
Transonic	4000 PNA, Transonic PNA3002
TFAC	BT-30 Bluetooth GPS
TYPHOON	My Guide 3500/ TYPHOON My Guide 3500 XL
Transonic	4000 PNA
Xaiox	BT15xxx, XAIOX Wonde X, XAiOX NavOne 2.0
Yakumo	DeltaX, Delta300GPS, Alpha-GPS
My Guide Navigator	6500 XL (LIDL)
Mio	168. 268. 269/ 269+ GPS Navigation Pack

Specification

• Frequency : 1575MHz ± 10 MHz   • Input Voltage: 2 ~ 5 VDC   • Input Current: 6mA, @ 3V input   • Antenna Type: PATCH   • VSWR: 2:1   • Polarization: Circular (RH)   • Impedance: 50 ohms   • Azimuth Coverage: 360 degrees.   • Elevation Coverage: 5~90 degrees.   • Coaxial cable : RG-174, 3M or 5M   • Dimension: 43.5 ×34.8 ×13.9 mm   • Operating Temperature: -40 ~ +80 ℃   • Storage Temperature: -40 ~ +90 ℃   • Operating Humidity: 5% ~ 100%   • Mount: Magnetic

•  Max. Gain : 29dB  (21dB@2V, 26dB@3V, 29dB@5V)       Return and refund: you can get full refund  with 14 days.   Quality production with 100% positive feedback.
