NEW HIGH QUALITY CISBO BRAND
PRODUCTION..

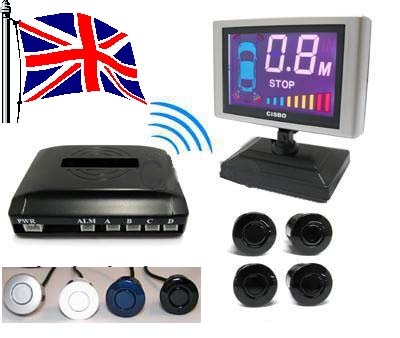

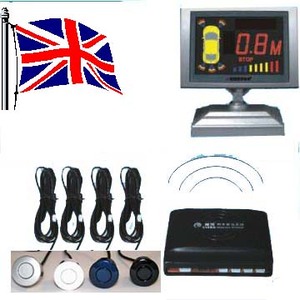

You dont need to fix this parking
sensor set wire from the back of the vehicle to front, but it ues
wireless technology to communicate between the control box at the rear of
the vehicle and the front displayer. the displayer is also a colour LED, and
you simply just need to plug it into cigarette light socket or
connect power directly.
Size of the screen: 5.3cm(H) X 8.2cm (W) X
2cm(D) and visual size: 3.8cm X 5.9cm,A buzzer is built in the unit with switch for turn
the sound on/off. 15 meters effective distance.
The effiective distance of the displayer is around 15 metres from
the main centre control unit, so it can be used for any Car, Estate,
4*4, Van, HGV's, Caravans, Trailers and Motorhomes etc.
The buzzer sound in different frequency according to
different distances. Details shown in the table:
|
ALARM
SOUND |
|
Stage |
Distance |
Area |
Sound |
Digital
display |
|
1 |
160-200cm |
Safe
Mode |
No
sound |
1.6-2.0 |
|
2 |
100-150cm |
Safe
Mode |
Bi------Bi--------Bi |
1.0-1.5 |
|
3 |
70-90cm |
Alarm
mode |
Bi---Bi---Bi--- |
0.7-0.9 |
|
4 |
40-60cm |
Danger
Mode |
Bi-Bi-Bi- |
0.4-0.6 |
|
5 |
30cm |
Danger
Mode |
Bi--------- |
0 |
Specifications:
1. Wireless CPU to
display communications, there are not any wire between the main board and the
display.
2. Digital LCD showing obstacle
distance
3. Alarm by Bi-Bi sound
4. Colorized LCD screen
5. Crescent shape digital display
screen
6.The simulative vehicle is displayed in the
colorized screen
7. High quality and easy to install
Technical:
1. Rated Voltage:
12V DC
2. Operating Range:
10.5V? 16V DC
3. Rated Current:
50mA? 180mA
4. Detecting
Distance: 0.3? 2.0m
5. Ultrasonic
Frequency: 40KHz
6. HF Frequency: 315MHz / 433MHz
7. Display Working
Temperature: -30 ? +70?
Kid includes:
- Wireless digital LED display with fused
cigarette light plug.
- Centre control box with power cable to connect
reversing light.
- 4 sensors, colour on request.
Note: We have black, silver,white and blue colour of
sensor,please note us what colour of sensor you want when you pay for it,if not,
we will send black colour. If you want buy it now, please visit our shop, and
the four sensors can be colour coated,sprayed and
painted,thanks.
