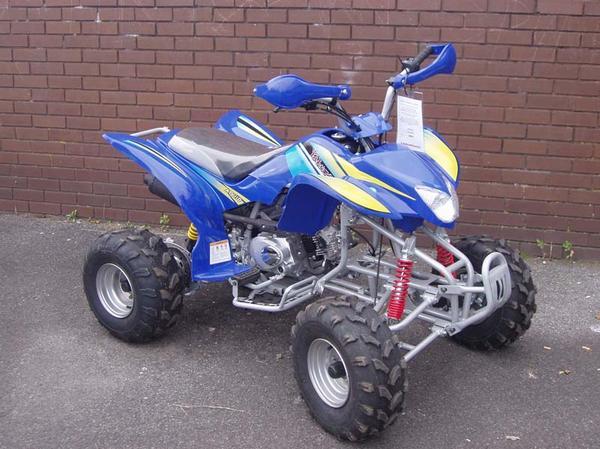

ATV110

Specification

Engine – 110cc air cooled 4 stroke (unleaded fuel) with choke, auto gears plus reverse, electric start, 30mph (appx) max speed

Suspension – Front-coil over shocks

                      Rear – single coil over shock

Brakes – Front – drum brakes (cable operated)

               Rear – single axle mounted hydraulic disc

Throttle – thumb with screw stop (restricts maximum speed if required)

Lighting – single front light, rear light/ brake light

Safety – front nudge bars, lever/grip covers, bar mounted kill switch

Tyre size – Front – 19 x 7-8

                   Rear – 18 x 9.5-8

Extras – Locking front brake, Bar mounted Status lights show when in Neutral or

              Reverse, rear cog/disc bash guard, roller type chain tensioner.

Security – none

Sizing

Foot peg to Seat top – 18”

Floor to seat top – 31”

Wheelbase – 46”

Overall length (excluding rear rack) – 68”

Overall width – to outside of wheels – 42”

                          widest point – 42” (front wheels)

Recommended age restrictions – suitable for over 14yr olds, under 16’s should have adult supervision at all times. Max permissible weight – 85kg

All quad bikes and scooters are brand new (unless noted), and in stock.

All payments must be cleared before we begin build up of your quad/ scooter, (this also applies to collections), if you are collecting please call/email after paying and we will advise the earliest date your purchase will be built and ready to collect.

Our quad bikes are supplied with rear racks (as shown in one of the pictures) but they will be supplied unfitted to make delivery easier, fitting is a simple job of bolting on if you wish to use it.

Our quad bikes are for off-road use only on private land with the land owners permission, they must not be used on public land or highways.

All scooters and quad bikes are delivered fully built and ready to ride using our own van, and on delivery a full technical handover will take place. You will be invited to inspect the vehicle, and will be shown the main operating features of the scooter/quad. The scooters are delivered registered and taxed, and the quad bikes are built to order, and as this process can take some time (we are at the mercy of the DVLA) we state a delivery time of up to 4 weeks on all scooters and quads.

Carriage rate advertised is for mainland UK addresses only, highlands and islands can be quoted for.

Scooters and quad bikes (unless special terms are in the listing) are supplied with a 12 month parts warranty covering manufacturing defects. Wear and Tear items will not be covered. Any listed damage on used/clearance stock will not be covered, nor may it form part of a reason for refusal/return.

All mechanical items require regular servicing and maintenance, a suitable schedule will be supplied with all quads and scooters and must be adhered to for the warranty to remain valid.
